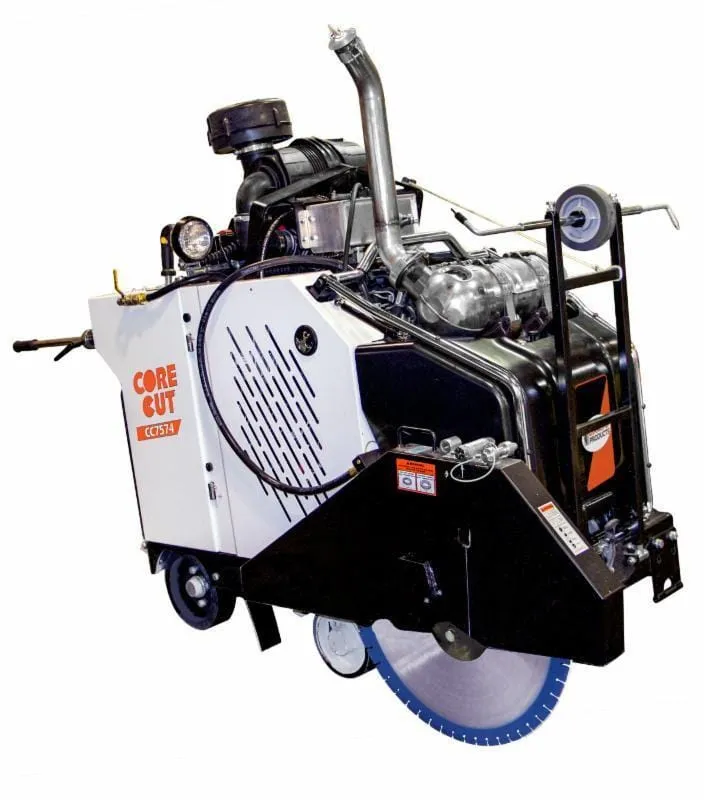

DIAMOND PRODUCTS CC7574DD CORE CUT SAW
BLADE NOT INCLUDED, AVAILABLE SEPARATELY
FEATURES & BENEFITS
- Tier 4 Final Deutz diesel engine
- Available with enhanced clutch assembly that allows the blade to be disengaged while the engine is running
- Easy maneuvering self propelled drive
- Strongest frame on the market
- Hydraulic wheel motor drive
- Blade shaft gearbox-oil bath for low maintenance
- 19-3/4" maximum cutting depth
- Maintenance-free DVERT® diesel oxidation catalytic converter (DOC-only, no DPF)
- High pressure common rail electronic fuel injection

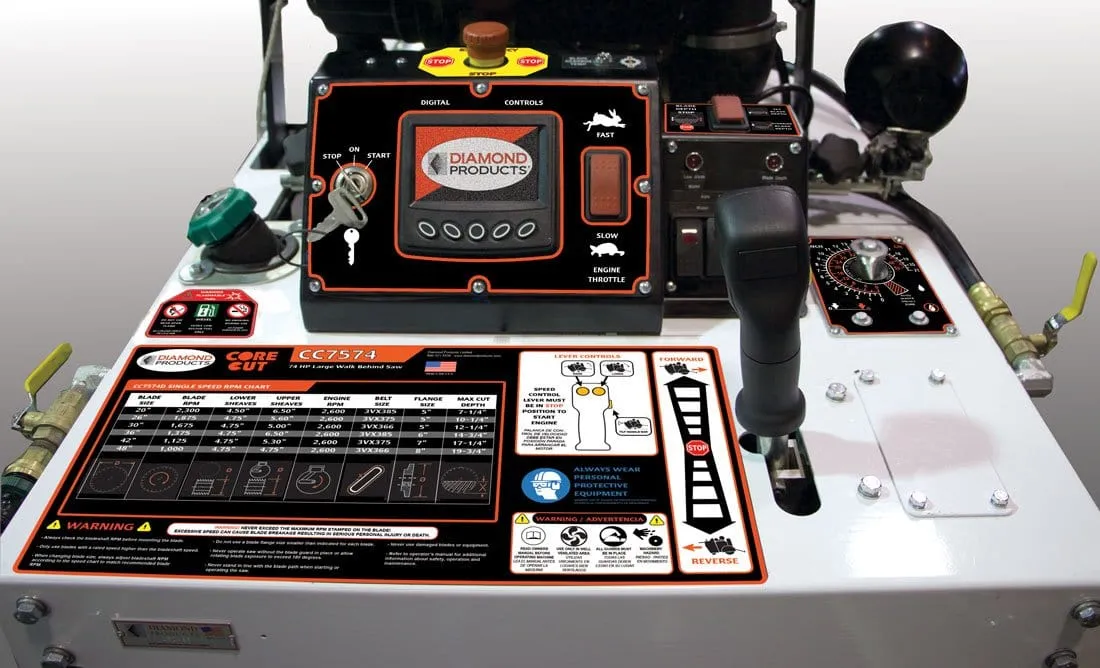

- Modern computer interface engine controls
CC 7574DD SPECIFICATIONS
| Horsepower | 74 hp |
| Motor | Deutz Turbo |
| Max depth of cut with 48" blade | 19-3/4" |
| Bladeshaft drive | 20 V-belts |
| Bladeshaft diameter | 2" |
| Weight, lbs | 2,229 |
